Drag Hose

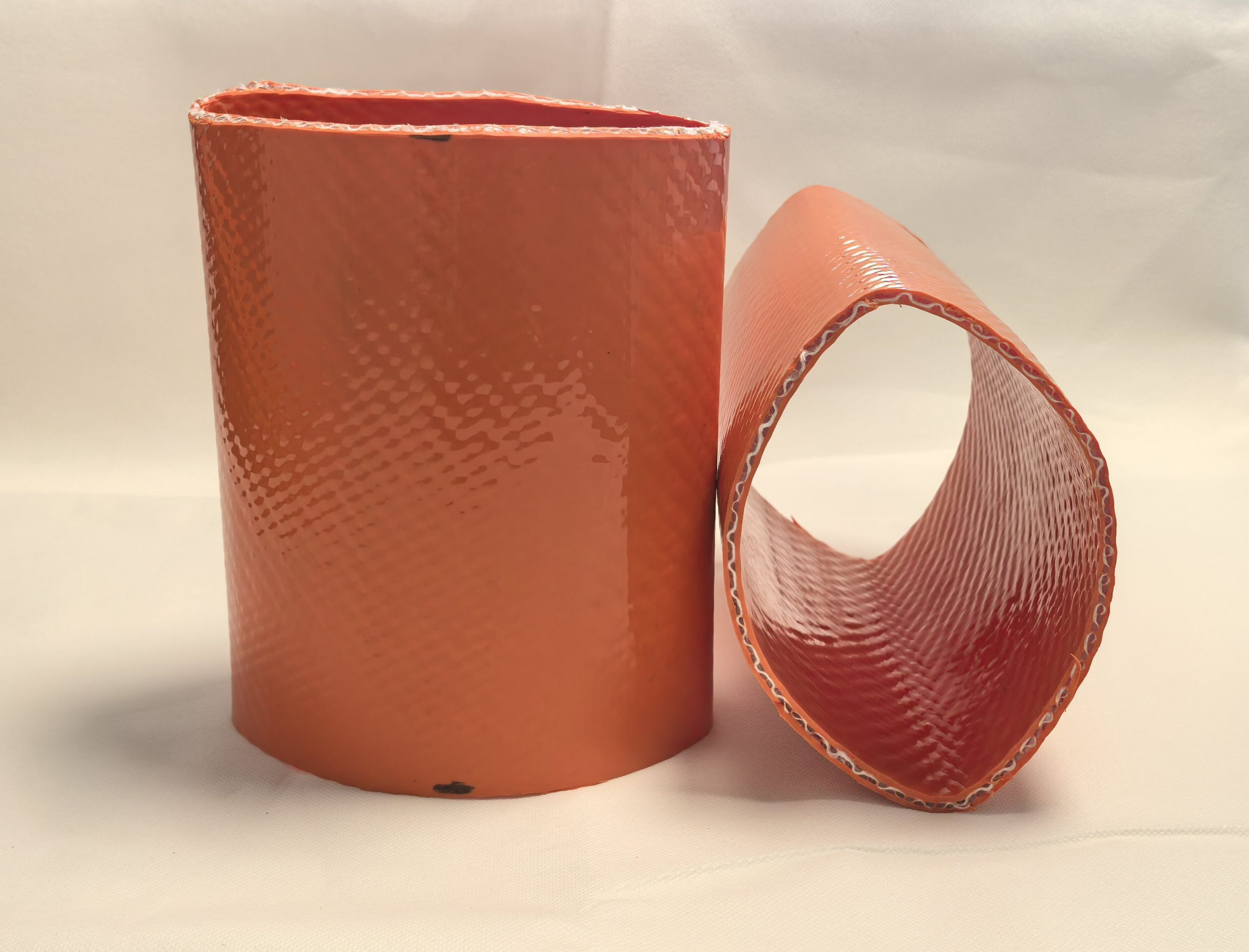

5”-10Bar TPU Manure Hose

Description
5inch -10bar TPU Drag hose is a new and safe sludge transfer and injection layflat hose.It generally used for distribution of slurry and manure in the big farm and agriculture fields. Drag hose can be equipped to the tow tractors and slurry pool by the quick couplings. Richkind offers the Drag Hose with the higher abrasion resistance and super high tensile strength (about 170KN/or 17 ton ) and this hose is friendly environmental and safe for fertilizing manure and distribution. And Premium Richkind drag hose can save money and time and all costs for your all using.

Features.

1.Covered and lined with Thermoplastic Polyurethane materials(TPU). 2.Extruding through the Weave Technology – ensuring ultimate adhesion strength between TPU layers and the weaved reinforcement 3.Special reinforced weave solutions can ensure the longitudinal Tensile strength and burst pressure. 4. Used for distribution of slurry and manure in irrigation and agricultural fields. 5.Designed with premium tensile strength and abrasion resistance performance. Advantages : Ultimate tensile strength and adhesion level polymer to weave. Excellent resistance of UV and harsh weathering Enhanced abrasion resistance. big diameter and extension stability. super Low radius. High abrasion resistance on the ground or wild using Wide temperature range -50ºC to +75ºC

Solutions.

Tech Specs.

No. Items Required Technical data Our real data
1 Inner Diameter(MM) 127MM 127MM
2 Hose Color Orange Orange
3 Working pressure(Bar) 10bar~11bar 10bar-11bar
4 Bursting pressure(Bar) 30bar 30bar-32bar
5 Unit Weight (KG/M) ≥2.2 2.3~2.4
5 Total(Average) wall-thickness(MM) 4.6~5.0 4.7~5.0
6 Inner layer Thickness(MM) ≥0.8 0.8~1.0
7 Outer layer Thickness(MM) ≥1.5mm 1.6~2.0
8 Adhesion (N/25MM) ≥160.00 180~200
9 Tensile Strength (KN /Ton) ≥120KN/12Ton 120KN /12 Ton
170KN /17 Ton
10 Length for each roll 200m 200~202
11 Packing type   Hose reel / pallets
